PinWoofer - Stern Spike-3 PowerWave Super Kit - Advanced Pinball Audio
If you need assistance click here or call 208-855-0346.
Add presence to your title and unlock the true potential of the audio track. Industry leading electronics - 100% in-house design. Industry leading speakers - the absolute best pinball speakers available. Tools required - 1/4", 5/16" and 11/32" Nut Drivers. Easy to install, incredible results every time!
Spike-3 Speaker Light Kits are offered at a 20% Discount when Bundled Here
Important Speaker Light Kit Information:
PixlWav Stern OEM Expression Speaker Light Upgrade Kit Option:
-
-
- Stern ships some newer titles with an OEM Speaker Light Package (The Walking Dead Remastered LE, Star Wars Fall of the Empire LE, etc.).
- The OEM offering is not visually appealing to many because it produces sparse illumination and the light is directed towards the speaker opening(s).
- Select this option if you really want your Stern OEM Speaker Lights to pop. This kit doubles the LED count from 20 to 40 per side and alternates inside and outside facing LEDs that more fully illuminate the speaker grille area.
- If your machine does not have Stern OEM Speaker Lights installed, this kit will not work.
- For more information about this option please review the following link: PixlWav Spike-3 Expression Speaker Light Upgrade Kit
-
PixlWav Dynamic Controller Backbox Speaker Lights Option:
-
-
- This light kit will function on any Spike-3 Title, and it delivers a beautiful light show using a controller with pre-programmed colors and patterns.
- For more information about this option please review the following link: PixlWav Spike-3 Dynamic Backbox Speaker Light Kit
-
Speakers and Mounting Rings:
-
-
- 8in Cabinet Speaker:
- PinWoofer Label PW-8, 8in, Dual Voice Coil, 120W RMS, 400W MAX, 2Ohm Cabinet Woofer
- This speaker runs two voice coils in parallel for maximum power transfer to the driver
- Unprecedented bass response featuring an industry high, 91.5dB sensitivity rating
- Rigid, 8in ABS injection molded Woofer Mounting Ring with Hardware to provide maximum coupling to the enclosure
- Spike-3 Titles Ship with 4in Backbox Speakers:
- PinWoofer Label PW-4, 4in, 30W RMS / 200W MAX Coaxial Speaker Pair
- Industry leading 0.75in Silk Dome Tweeter for ultra-smooth response
- PinWoofer 4in Mounting Hardware
- 8in Cabinet Speaker:
-
Electronics:
-
-

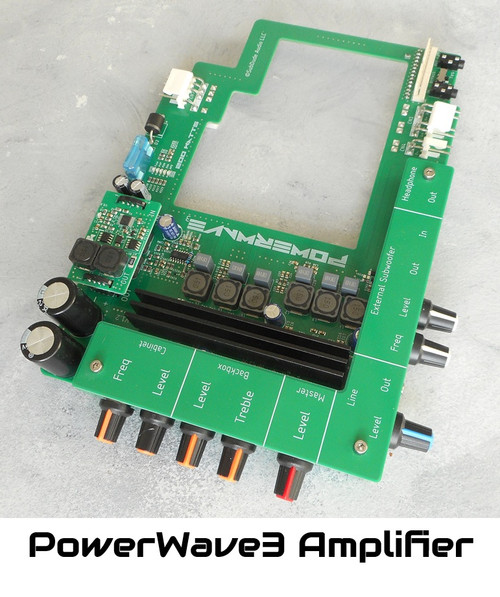

- PowerWave Amplifiers Features:
- No-pop, soft power on and power off
- 2.1 Amplification sections - 50Wx50W Backbox and 100W Cabinet Final Stage*
- Adjustable Bass Cutoff Frequency
- Adjustable Cabinet Bass Level
- Adjustable Backbox Volume
- Treble Adjustment
- Adjustable, pro level line-output for external monitor or streaming
- External Subwoofer Section with Bass Frequency Cutoff Control, Bass Volume Control, Subwoofer Input Jack for External Subwoofer Chaining (route multiple Machines into one external subwoofer), and an External Subwoofer Output Jack
- Headphone Jack
- Convenient, up-front mounting for easy access to the amplifier controls
- PowerWave Direct Docs to the CPU Node Board
- Includes:
- Speaker Quick Connects
- Playfield Glass Shake Reduction Tape
- Integrated Power Board
- All necessary hardware
- PowerWave Amplifiers Features:
-
Notes:
-
-
- Stern has changed the Spike-3 line level audio output behavior compared to Spike-2 as follows:
- The Amplifier volume now remains constant even when changing the game volume.
- The best approach to having seamless volume adjustment is to purchase separately, a Headphone Station which gives you volume control access at the outside of the coin door. This approach allows for both speaker and headphone volume to be easily adjustable with your new PowerWave Amplifier. Below are some suppliers:
- A second, low-cost approach is our Remote Volume Control (RVC) to provide volume adjustment just inside the coin door.
- Both the Headphone Station and RVC are not required for your new audio system, but without one of these, the backglass must be removed to access amplifier volume.
- Optionally add a Spike-3 RVC to your cart now or purchase it stand-alone later should the need arise. More information: Spike-3 Remote Volume Control
- The kit is comprehensive and ships with any required Amplifier Mounting Bracket / Docking solution to ensure a permanent, secure fit
- All necessary hardware is included
- Stern has changed the Spike-3 line level audio output behavior compared to Spike-2 as follows:
-
* Average maximum amplifier power in application can be approximated by taking the product of the MAX power rating per channel and 1/(√2*1.5).
